Two-Piece Injection-Molded Electrical Box Housing – 1199 Series
- Two-piece enclosure with mounting tabs and internal standoffs
- Custom connector openings, resin, color and surface finish
- Available with inserts, hardware, assembly and export packing
Generate QR code
-
Estimated Delivery:Aug 03 - Aug 07
Product description
Product Overview
Two-Piece Injection-Molded Electrical Box Housing – 1199 Series

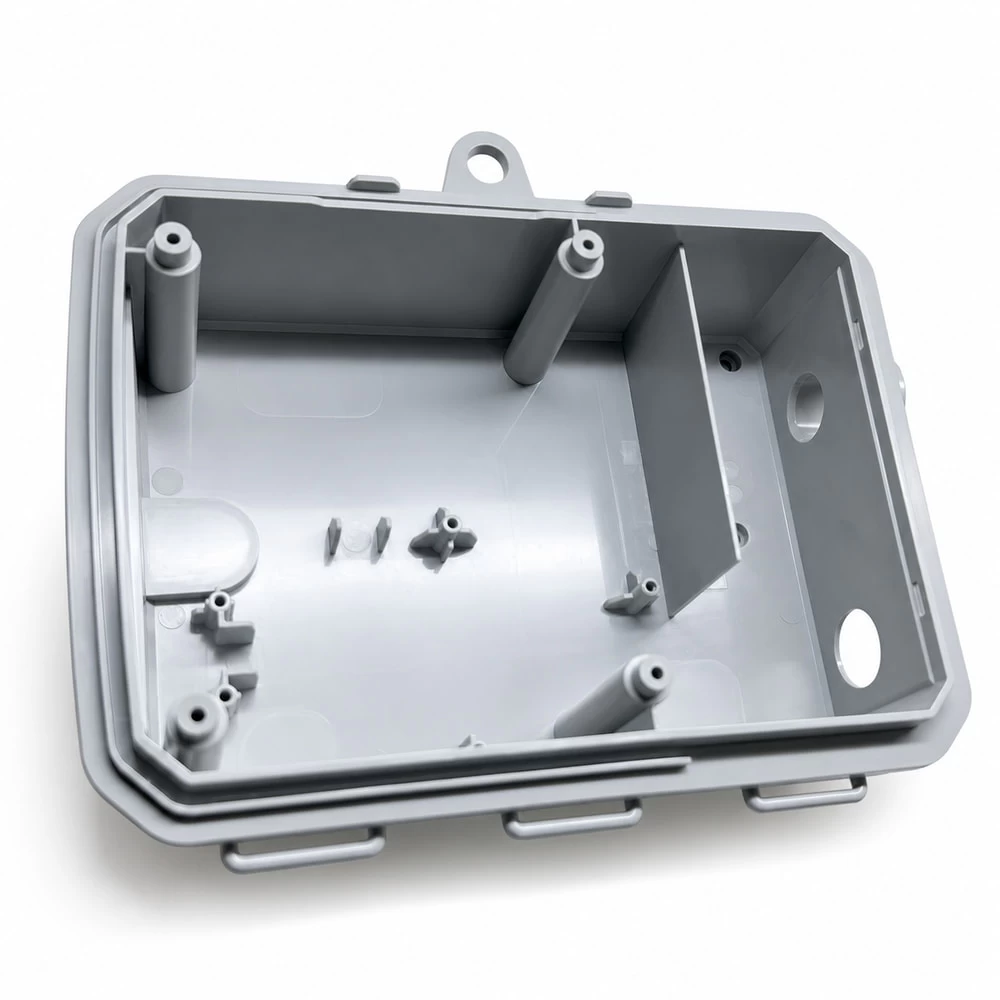

The 1199 Series is a two-piece injection-molded electrical box housing with a compact rectangular profile, external mounting features and an interior arranged for project-specific components. The product images show a separate cover and base, molded standoffs, cable or connector access areas and fastening locations. These features make the housing a practical starting point for OEM sensor, controller or communication assemblies. Because enclosure performance depends on the selected resin, gasket, hardware and final assembly, no ingress or flame rating is assumed. Hengmei can develop the mold, mold the parts, install inserts, perform secondary finishing and pack completed sets.
two piece injection molded electrical box housing
Key Features
Engineered Around Your OEM Requirements

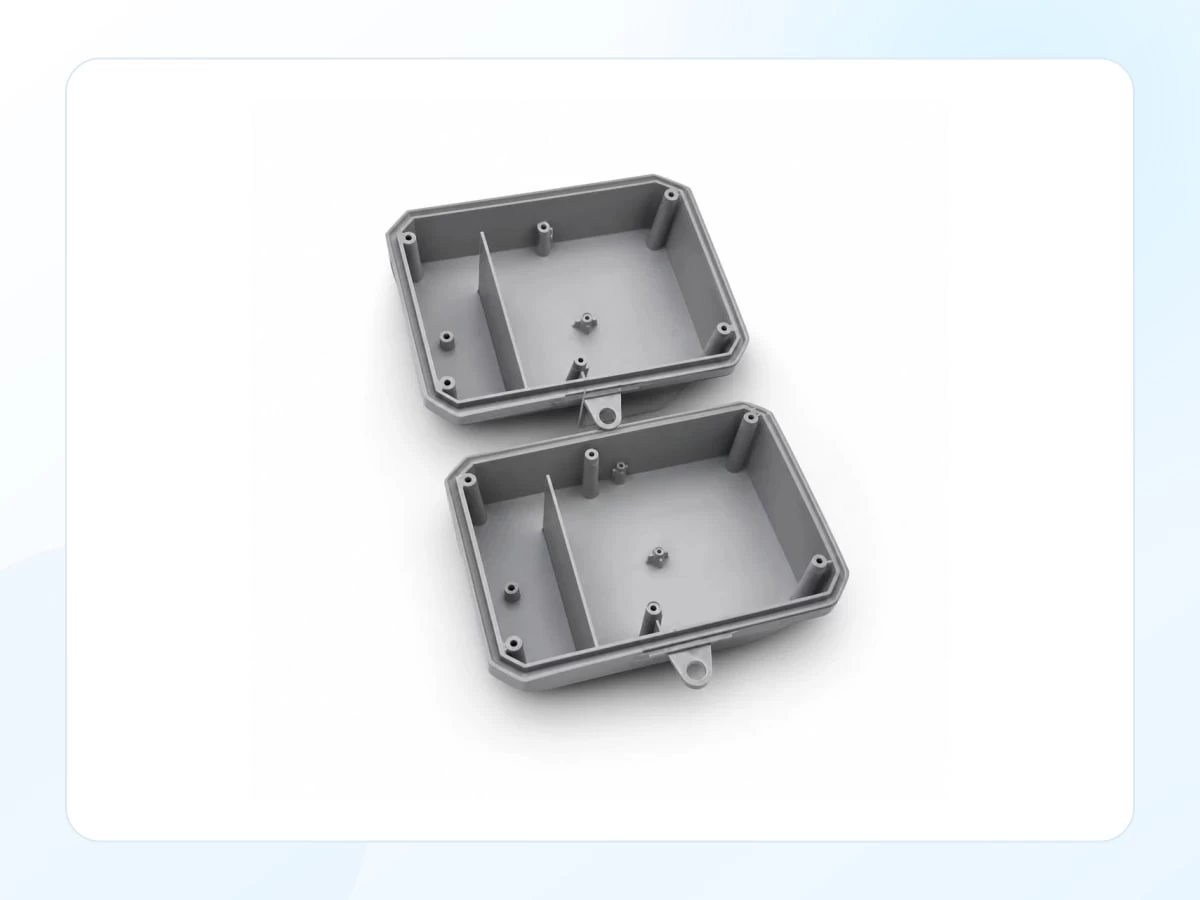

Two-piece cover and base format supports installation and service access

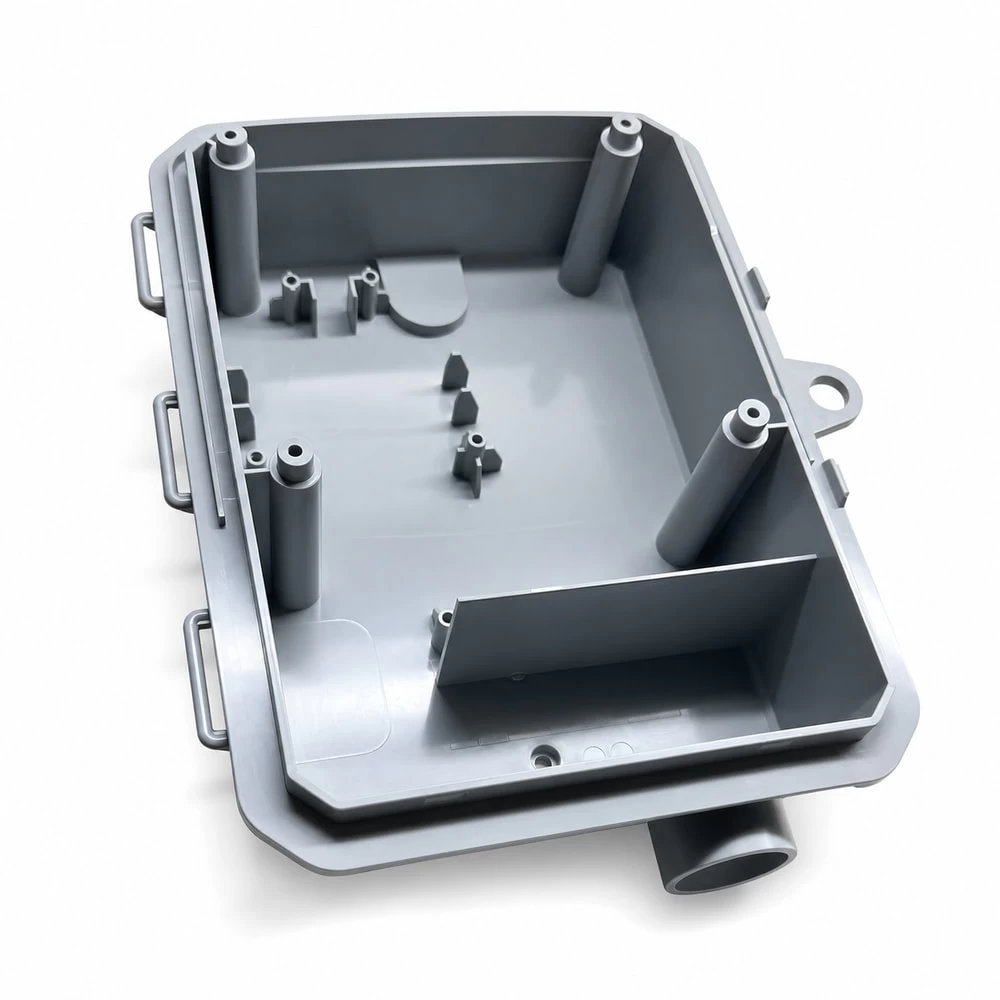

External mounting tabs visible for secure equipment integration

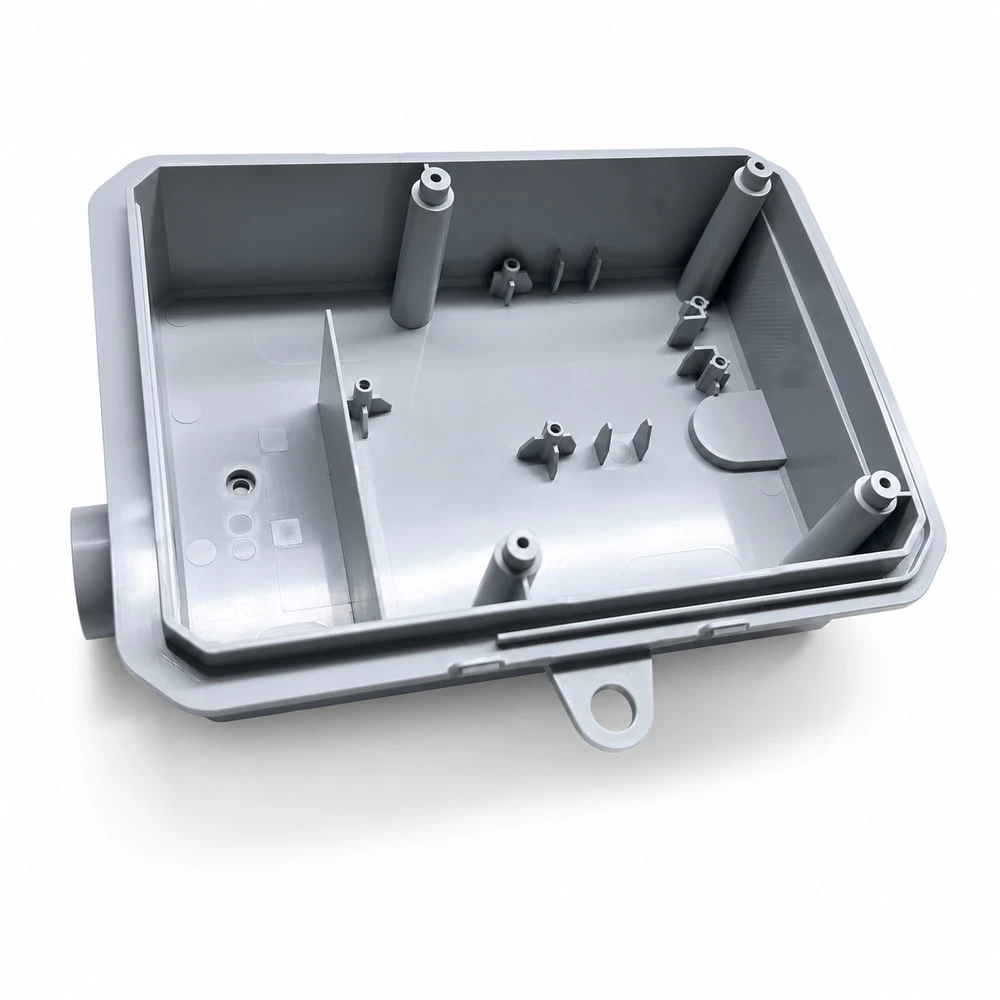

Internal standoffs and locating features organize project components
Side and bottom interface zones can accommodate cable or connector designs
Compact enclosure geometry supports efficient injection molding
Custom surface texture, color and branding options
Available as molded parts or as a completed enclosure subassembly
Product Specifications
Verified Fields and Custom Parameters
| Series | 1199 |
|---|---|
| Construction | Separate injection-molded cover and base |
| Mounting | External tabs and internal molded standoffs |
| Interface Openings | Custom to cable, connector or component layout |
| Material | Project-specific resin options available |
| Dimensions | Contact us for detailed specifications |
| Finish | As-molded texture, printing or labeling options |
| Ingress / Flame Rating | Available only after material and final assembly validation |
Exact dimensions, material grades, compliance documents and performance limits are confirmed from approved drawings, samples and project requirements.
Applications
Built for Relevant Industry Use Cases
Communication Devices
Protective enclosure for wired or connected modules.
Industrial Control Units
Mounted shell for control boards and terminals.
Appliance Electronics
OEM enclosure for internal or external controller assemblies.

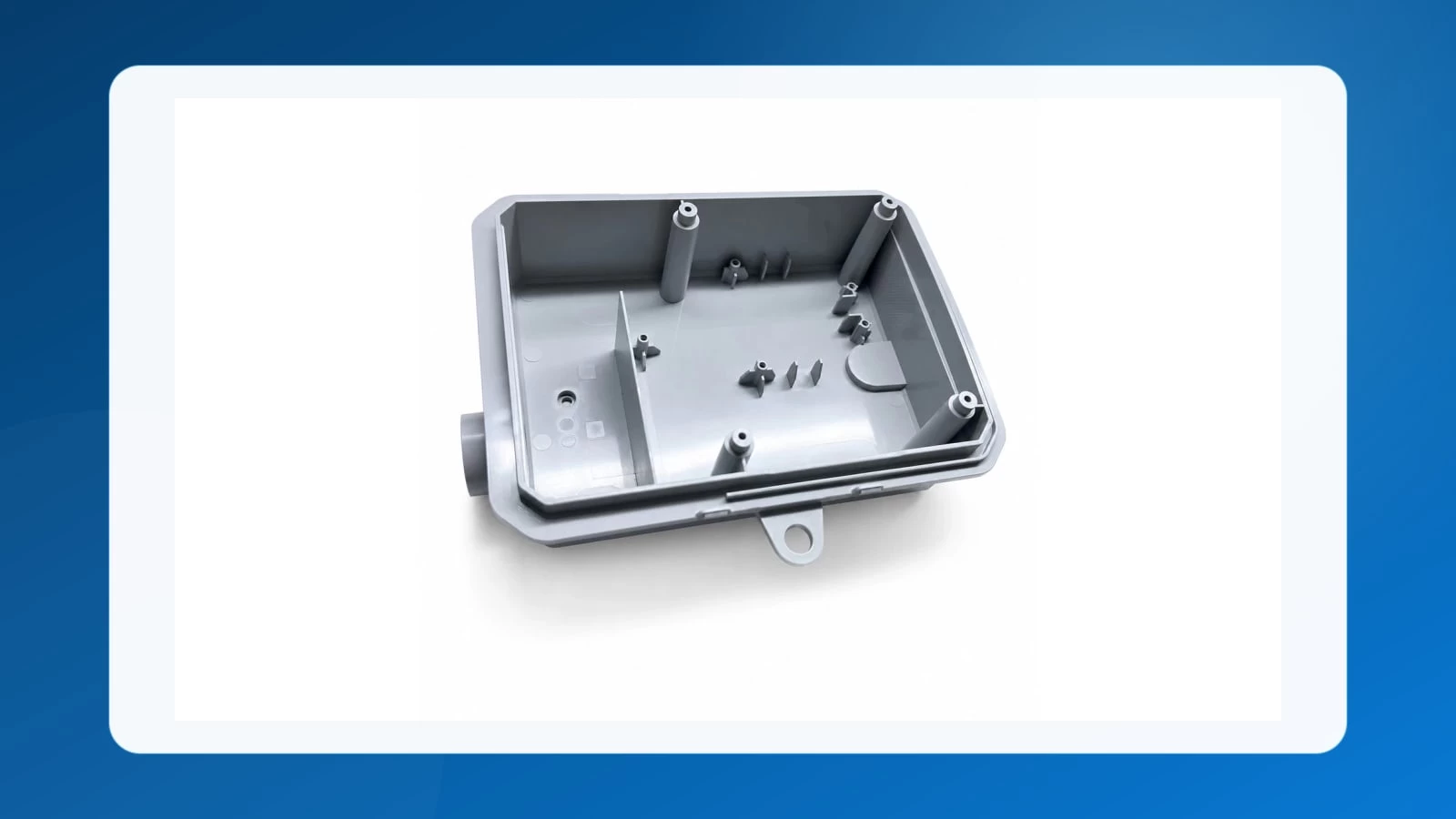

Customization Options
Configure the Part for Your Production Program
MaterialResin matched to indoor, outdoor, heat or impact requirements.
DimensionsCover depth, base footprint, wall thickness and standoff layout.
ColorCustom molded colors with gloss or texture control.
LogoMolded identity, printed graphics or durable label area.
ProcessThreaded inserts, gasket integration, drilling and assembly.
PackagingMatched sets, protected cosmetic surfaces and export cartons.
Packaging & Manufacturing
Controlled from Molding to Export Delivery
Integrated Injection Molding Support
The control plan can include housing flatness, mounting-tab geometry, standoff location, cover engagement, cosmetic surface checks and assembled fastener alignment. Trial parts are reviewed before mass production and critical features can be verified with gauges or fixtures. Any gasket compression, impact, ingress or electrical performance requirement must be tested on the agreed final assembly.
Mold development and trial molding
Controlled repeat production
Dimensional and appearance inspection
Secondary processing and assembly
Packaging & Shipping
Cover and base parts can be nested only after deformation risk is reviewed; otherwise they are separated with bags, pads or trays. Fasteners and inserts can be packed in labeled accessory bags or installed before shipment. Carton quantity, pallet pattern and shipping marks are confirmed from the approved part dimensions and destination requirements.
FAQ
Procurement Questions for Injection-Molded Electrical Enclosures
Can the mounting tabs be repositioned?
Yes. Mounting geometry can be changed during design review to match the equipment frame and installation load.
Can you add PCB standoffs inside the box?
Internal bosses and standoffs can be designed from the board outline, hole pattern and required clearances.
Is a gasket included?
A gasket is not assumed from the current images. Gasket channels, material and assembly can be developed when sealing requirements are provided.
Can the box include cable glands or connectors?
Openings and mounting features can be created for specified glands, connectors and strain-relief components.
Can you supply screws and inserts?
Yes. Hardware sourcing, insert installation and matched-set packing can be included in the project.
Which colors are available?
Custom molded colors can be matched to a supplied reference or approved color standard.
How is cover alignment checked?
Engagement features, gaps, fastener positions and mating surfaces can be inspected using approved samples and fixtures.
What files are needed to customize the housing?
Please send 3D CAD, 2D drawings, board and connector layouts, performance requirements and forecast volume.
Related Products & Categories
Continue Your Product Research
Start Your Custom Project
Two-Piece Injection-Molded Electrical Box Housing – 1199 Series
Share your drawings, samples, performance requirements and forecast volume. Our team will review manufacturability, tooling, molding and export requirements for your program.
