Industrial Controllers
Base housing for boards, terminals and control components.
Custom Injection-Molded Electrical Enclosure Base – 1056 Series
- Deep injection-molded enclosure base with bosses and ribs
- Custom resin, dimensions, mounting and cover interfaces
- OEM tooling, trial molding, inspection and export packing support
Generate QR code
-
Estimated Delivery:Aug 03 - Aug 07
Product description
Product Overview
Custom Injection-Molded Electrical Enclosure Base – 1056 Series

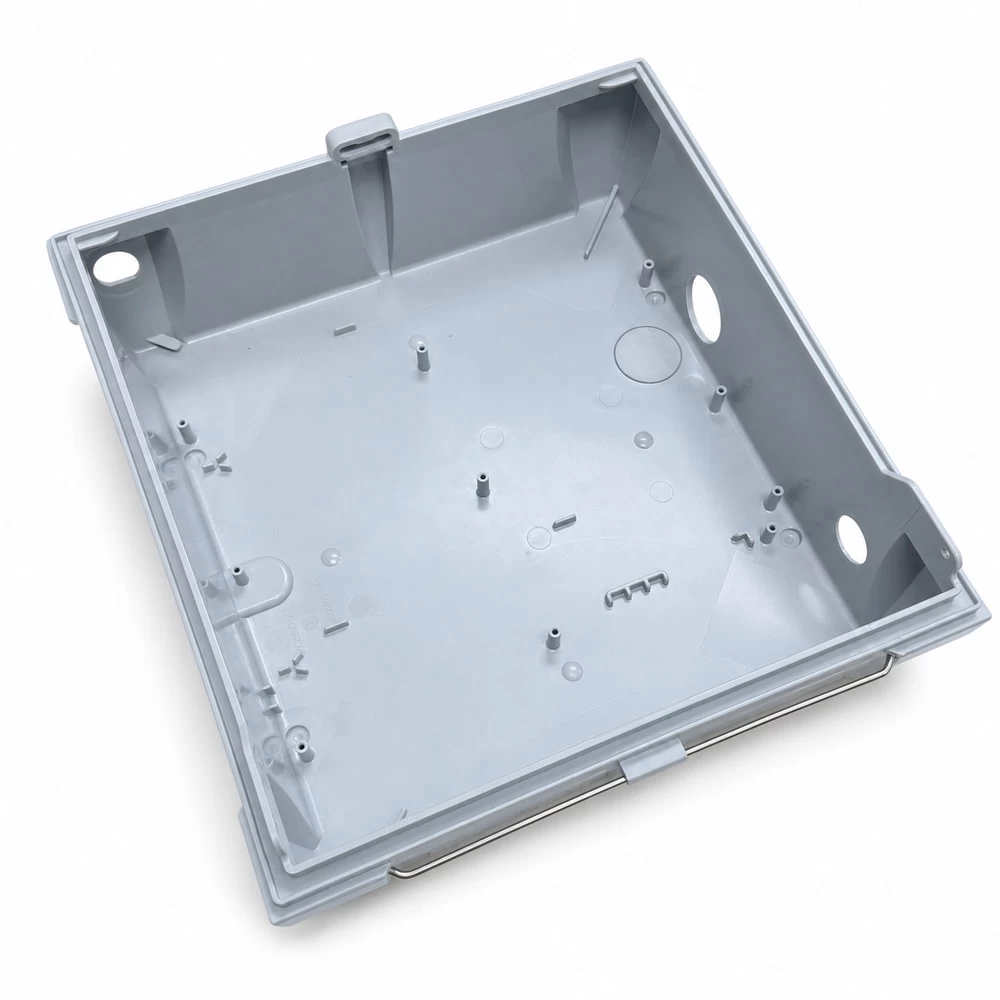

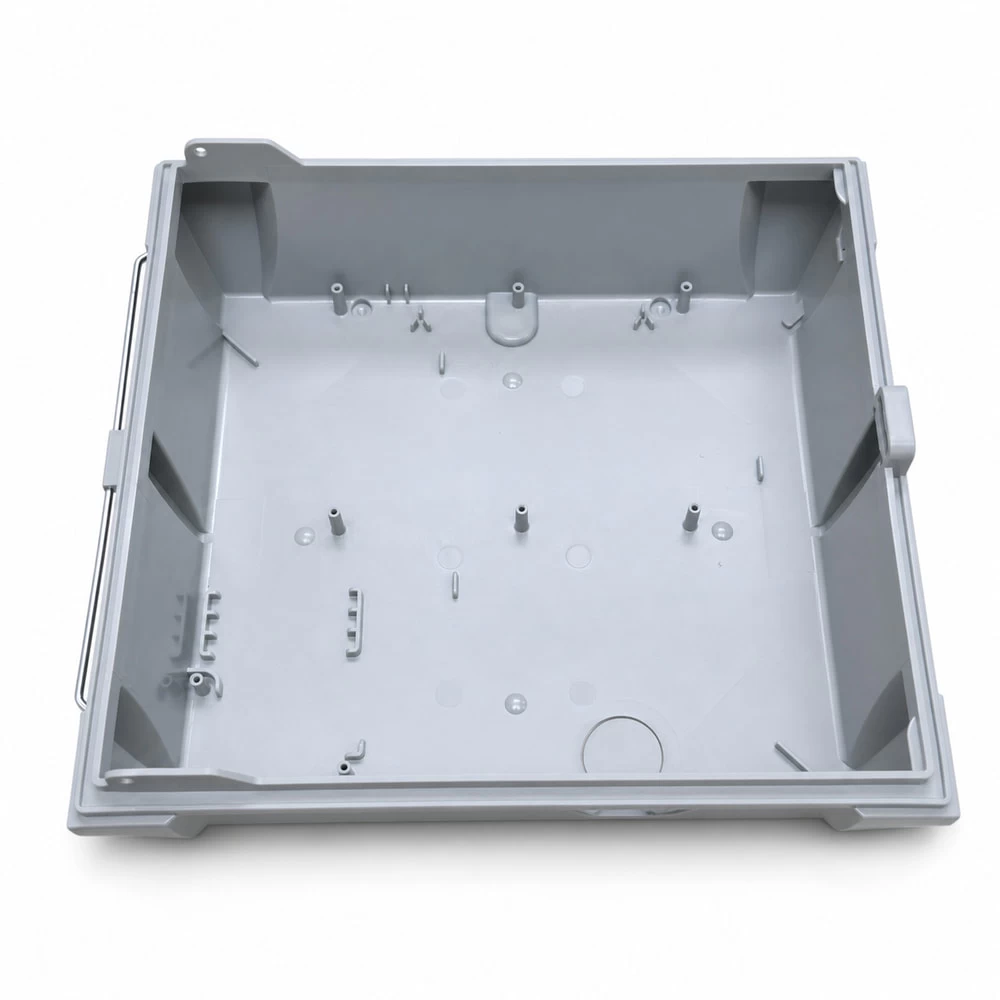

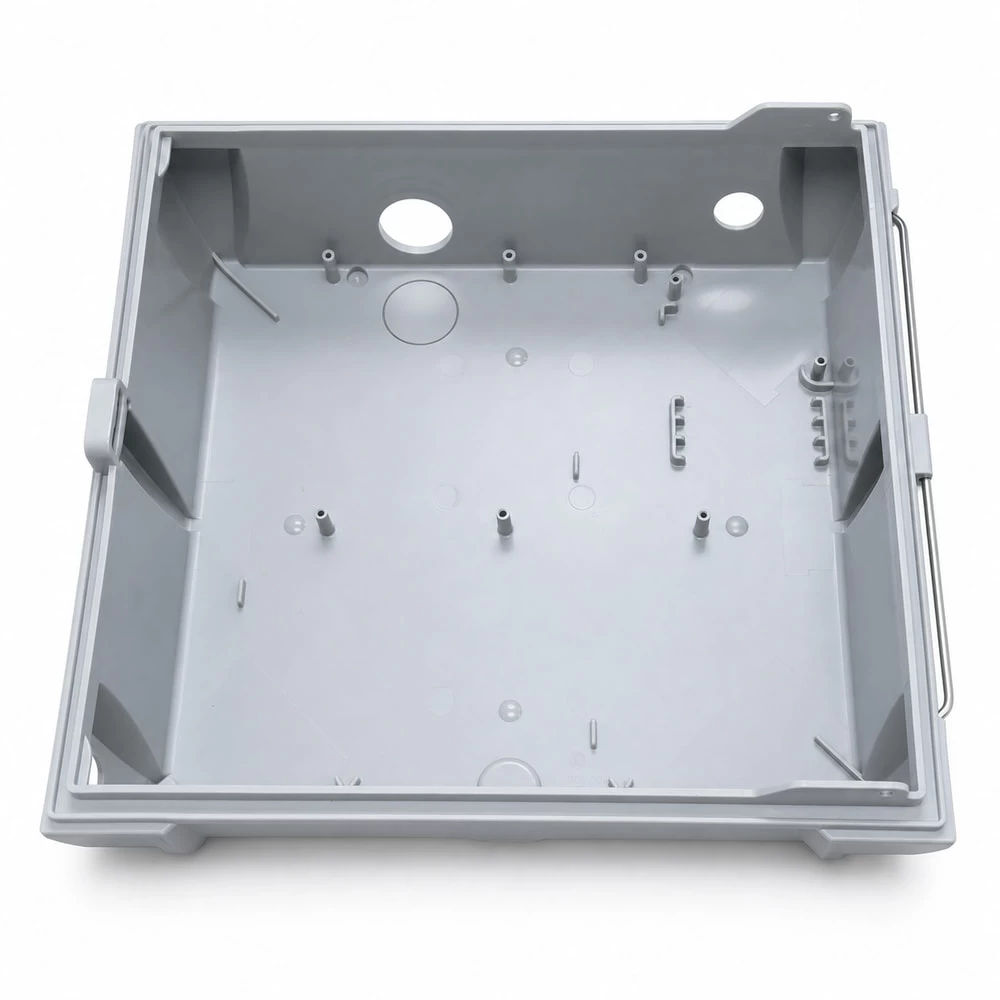

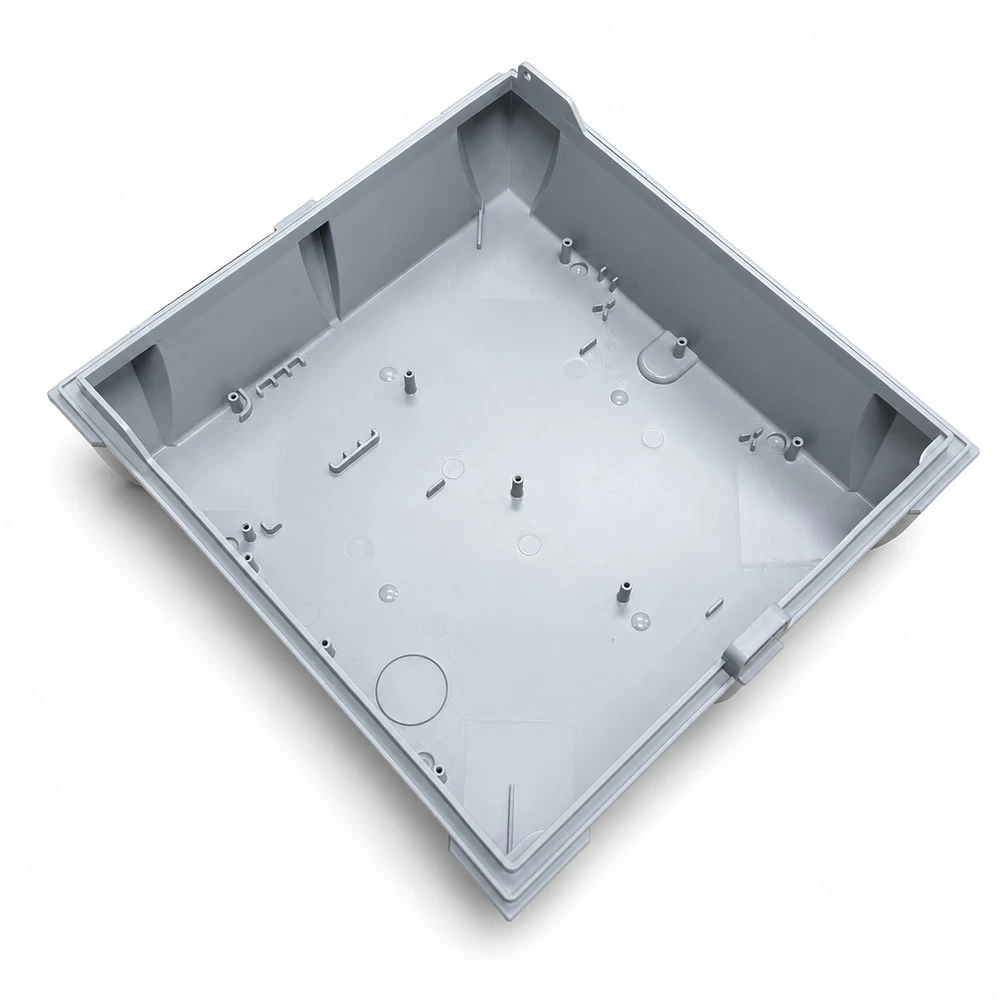

The 1056 Series is a custom injection-molded electrical enclosure base designed to hold project-specific electronic or electromechanical assemblies. Product images show a deep rectangular shell with molded walls, internal bosses, ribs and multiple interface points that can support boards, brackets, cables or a mating cover. This is an OEM component rather than a fixed off-the-shelf rated box, so dimensions, resin, flame performance, sealing and mounting details are confirmed from the customer’s drawings and validation plan. Hengmei supports mold development, trial molding, appearance review, dimensional inspection and repeat production for global equipment brands and contract manufacturers.
custom injection molded electrical enclosure base

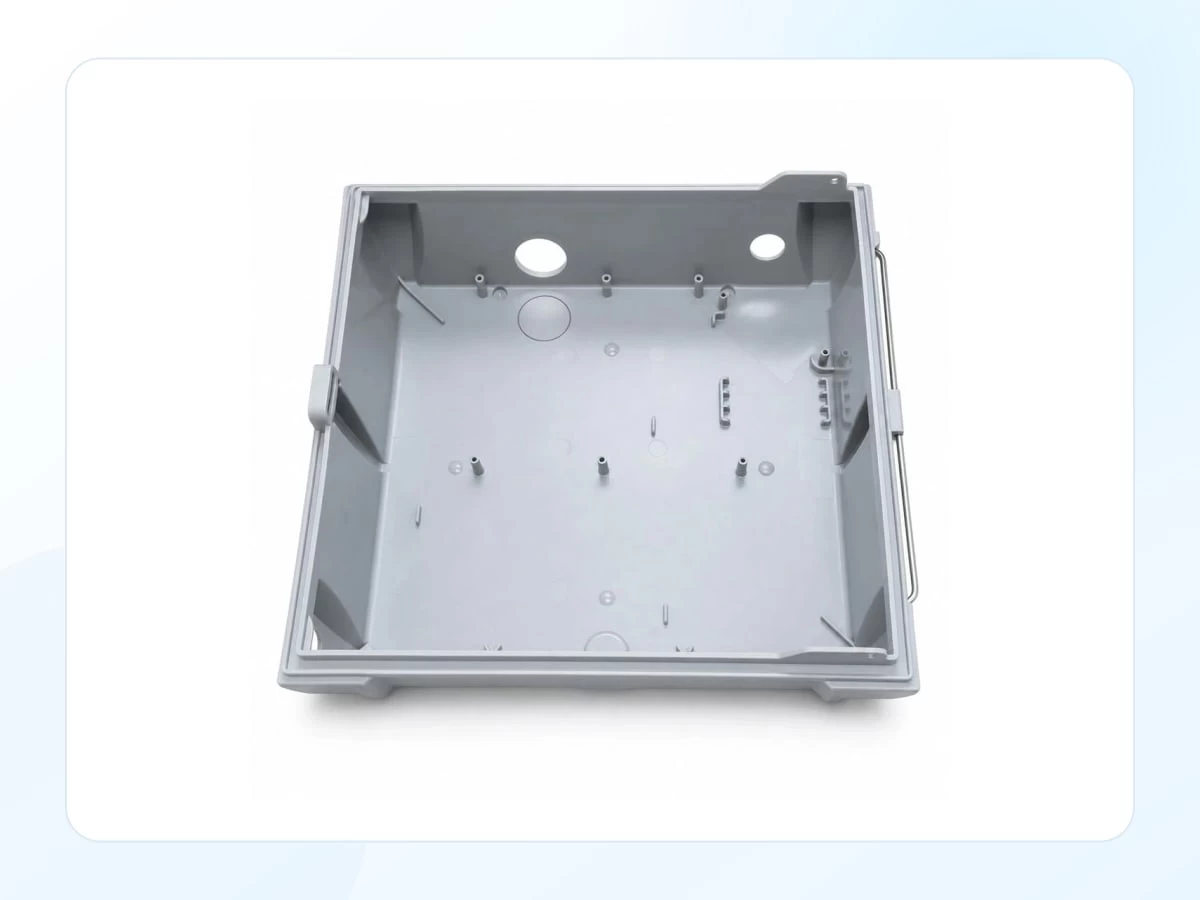

Key Features
Engineered Around Your OEM Requirements

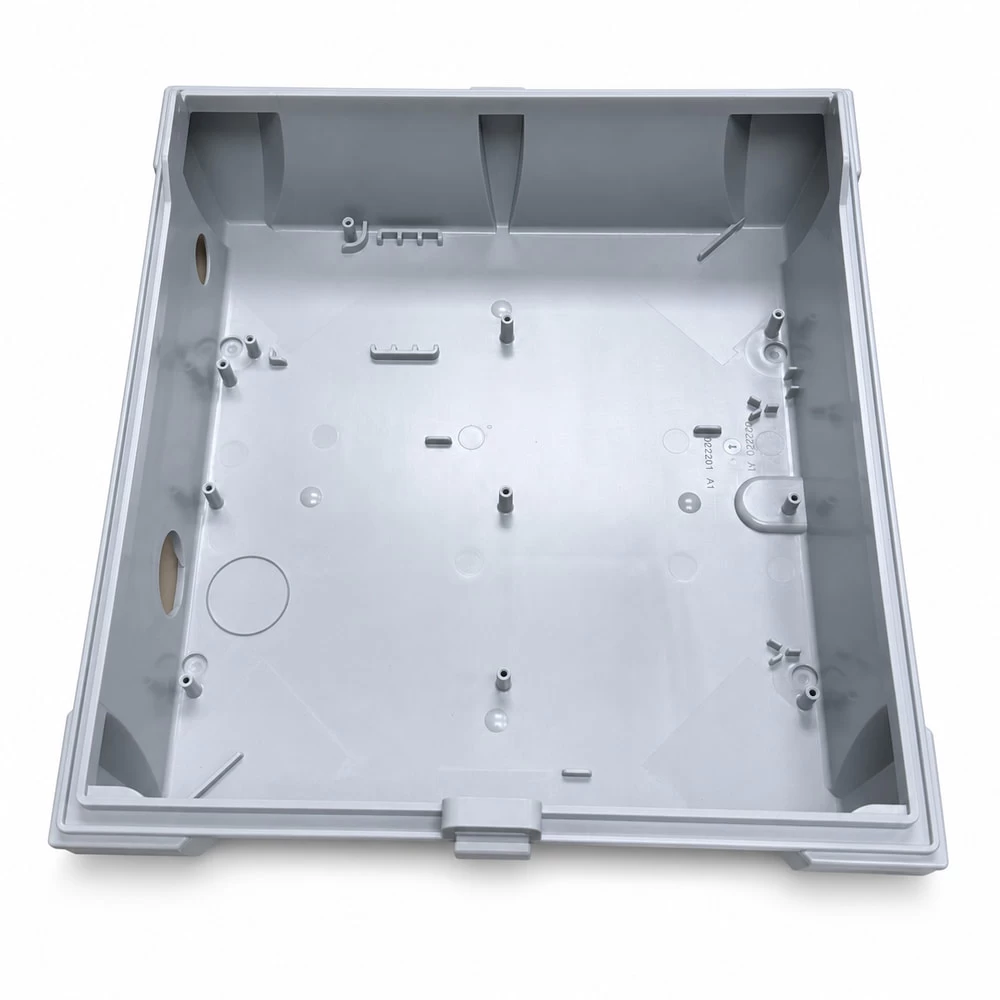

Deep rectangular enclosure base with a stable open assembly area
Molded bosses and ribs for project-specific internal component positioning
Integrated wall openings and interface zones visible in the current design
One-piece molded construction supports efficient repeat production
Exterior geometry can be adapted for mounting, cover engagement and cable routing
Resin, color, texture and performance requirements are selected per application
Suitable for coordinated tooling, molding and secondary assembly programs
Product Specifications
Verified Fields and Custom Parameters
| Series | 1056 |
|---|---|
| Component Type | Open electrical or electronic enclosure base |
| Manufacturing Process | Plastic injection molding |
| Internal Features | Molded bosses, ribs and mounting points |
| Material | Custom options available after application review |
| Dimensions | Available upon request or made to customer drawing |
| Color & Texture | Custom molded color and surface options |
| Environmental Rating | Not assumed; complete assembly requires project-specific testing |
Exact dimensions, material grades, compliance documents and performance limits are confirmed from approved drawings, samples and project requirements.

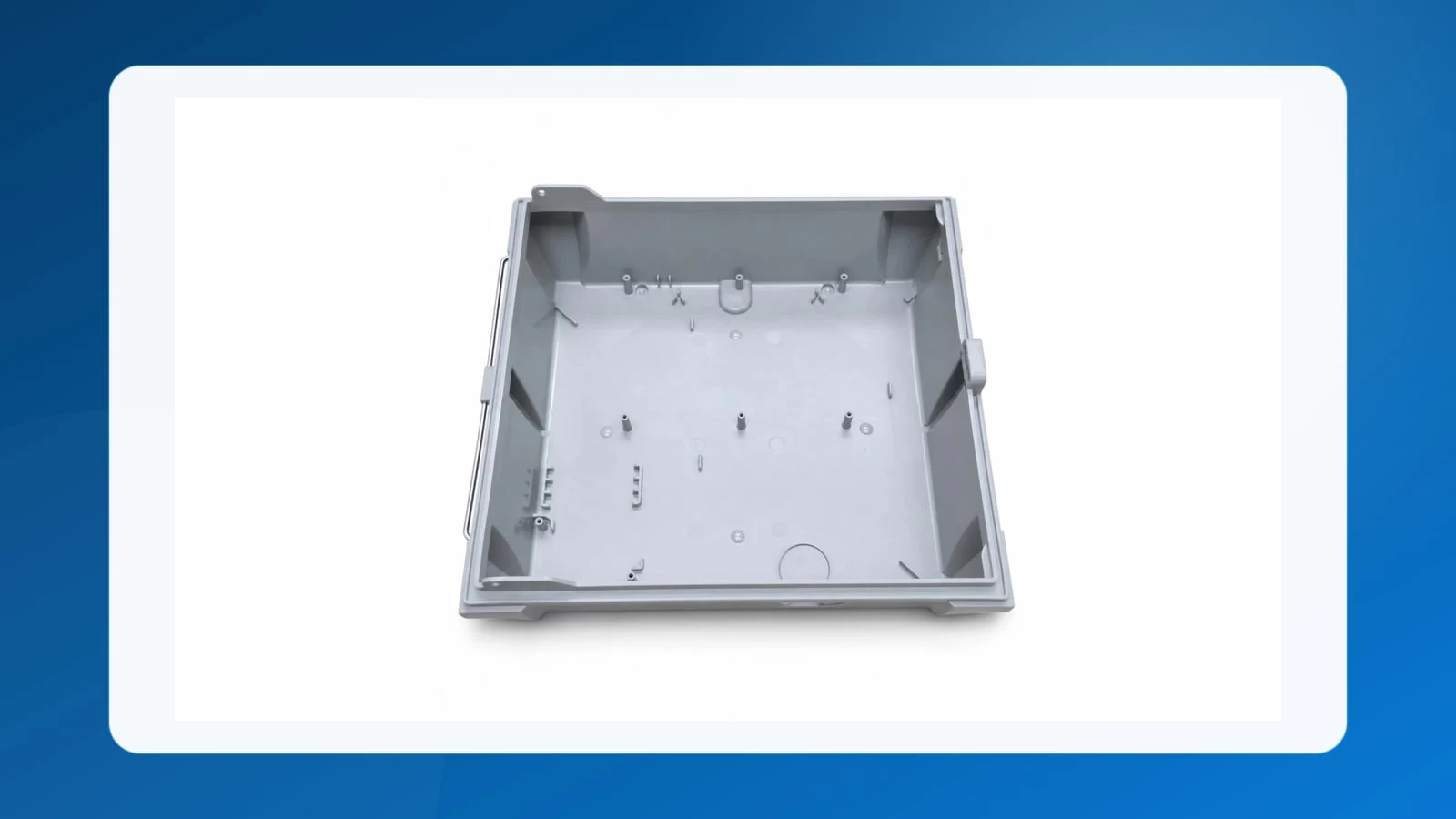

Applications
Built for Relevant Industry Use Cases
Power and Interface Modules
Protective shell for project-specific electrical assemblies.
Appliance Electronics
Internal enclosure base for appliance control systems.
OEM Equipment
Custom housing integrated into machinery or branded equipment.
Customization Options
Configure the Part for Your Production Program
MaterialGeneral-purpose or engineering resin selected to heat, impact and electrical needs.
DimensionsOuter envelope, wall height, wall thickness and interface geometry.
ColorCustom molded colors with reference sample matching.
LogoMolded mark, pad printing, laser marking or label recess when suitable.
ProcessingThreaded inserts, drilling, printing and assembly options.
PackagingProtective bags, trays, dividers and export cartons.
Packaging & Manufacturing
Controlled from Molding to Export Delivery

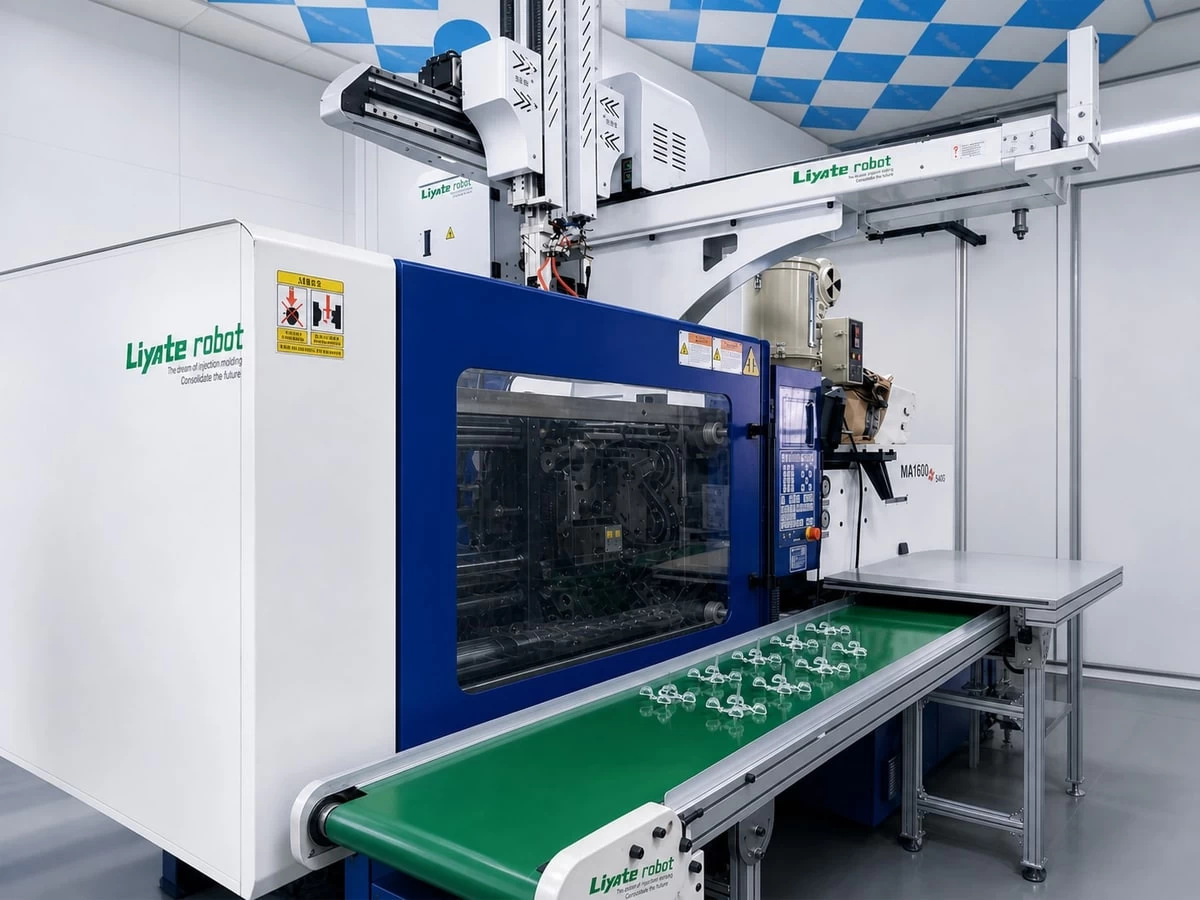

Integrated Injection Molding Support
Quality planning focuses on flatness, boss position, wall condition, interface dimensions and appearance. Hengmei can review moldability before tooling, approve trial samples and establish in-process checks around critical mounting and cover-fit features. Any flame, ingress, impact or electrical requirement must be defined by the buyer and validated on the final assembled product using the agreed material and test method.
Mold development and trial molding
Controlled repeat production
Dimensional and appearance inspection
Secondary processing and assembly
Packaging & Shipping
Enclosure bases can be protected with individual bags, layer pads or formed trays to prevent cosmetic rubbing and deformation in transit. Carton quantity and pallet pattern are confirmed after final dimensions and part weight are approved. Lot labels, customer barcodes and export packing instructions can be incorporated into the production order.
FAQ
Procurement Questions for Injection-Molded Electrical Enclosures
Is the 1056 Series a finished electrical box?
It is supplied as a custom molded enclosure component. Covers, hardware and internal assemblies depend on the customer project.
Can you change the boss and rib layout?
Yes. Internal features can be engineered from PCB, bracket and assembly requirements before the mold is finalized.
Is the enclosure waterproof or IP rated?
No rating is assumed from the image alone. An ingress rating requires a complete enclosure design, sealing strategy and formal testing.
Can flame-retardant resin be used?
Suitable resin options can be quoted when the required flame rating, thickness and supporting documentation are specified.
Can you add metal threaded inserts?
Yes. Molded-in or post-installed inserts can be evaluated based on torque, pull-out and assembly requirements.
Can the exterior include a logo or texture?
Mold texture, molded branding, printing and labeling are available after design review.
How do you verify the cover fit?
Mating dimensions, flatness and engagement points can be checked with approved samples, gauges or assembly fixtures.
What should we send for quotation?
Please provide CAD files, drawings, annual volume, resin requirements, mating-part data, critical dimensions and packing needs.
Related Products & Categories
Continue Your Product Research
Start Your Custom Project
Custom Injection-Molded Electrical Enclosure Base – 1056 Series
Share your drawings, samples, performance requirements and forecast volume. Our team will review manufacturability, tooling, molding and export requirements for your program.
